Mortise Lock Repair & Installation
Older homes throughout Mississauga — from the mid-century bungalows lining Lakeview's residential streets to the stately brick semis near Port Credit village — were built with mortise locks as the standard. Unlike the cylindrical locksets common in newer construction, a mortise lock is a full-body mechanism that sits recessed inside a deep pocket (the "mortise") cut into the door stile. The lock body integrates the latch bolt, deadbolt, and often an auxiliary function all in one heavy-duty unit, which is why these locks have outlasted decades of daily use. When one starts to fail, the repair requires far more than swapping a knob — it demands hands-on knowledge of lock bodies, spindles, cam geometry, and cylinder tailpieces.
Open 24 hours, 7 days a week · Licensed, bonded & insured
Quantum Guard Mississauga Security is a 24/7 mobile locksmith service that travels directly to your door. Our trained and insured technicians carry mortise lock bodies, replacement cylinders, and the specialized tooling needed to rebuild, rekey, or fully replace mortise hardware on the spot — no trip to a shop, no leaving your home unsecured overnight. Whether you're dealing with a sagging latch that won't catch, a frozen cylinder on an exterior door, or a complete lock body that has finally given out after 50 years of service, we diagnose the root cause before recommending a fix and confirm an exact up-front price before any work begins.
What we do
Available 24/7
Day, night, weekends and holidays — a real local locksmith answers and rolls a fully-stocked van.
Fast local response
Based in Mississauga, we reach the Mississauga area in well under an hour.
Insured & background-checked
Vetted technicians, up-front pricing, and no surprise add-ons when we arrive.
Damage-free entry
We pick and bypass locks the right way, so most lockouts are solved without drilling anything.
What Is a Mortise Lock — and Why Older Mississauga Homes Depend on Them
A mortise lock differs fundamentally from a bored cylindrical lock. The lock body — a rectangular steel case containing all of the mechanical components — is set into a pocket mortised into the edge of the door. A separate mortise lock cylinder threads into the face of the body and drives an internal cam that operates the deadbolt and latch independently. This architecture means the door face remains largely uncut, which is one reason these units are so structurally sound. Heritage-era doors in Mississauga neighbourhoods like Cooksville and Mineola were engineered around this format, and the thick stiles on those doors still accommodate a full mortise lock set far better than they would a retrofit bored lock.
The tradeoff is complexity. Mortise hardware has more moving parts than a standard knob-and-deadbolt combination, and each brand and era uses different cam profiles, hub sizes, and cylinder formats. A Corbin Russwin mortise lock from the 1960s does not accept the same cylinder or spindle hub as a modern Baldwin mortise lock, and confusing the two is a common source of failed DIY repairs. Our technicians carry reference materials and a broad inventory of components precisely because this hardware is not one-size-fits-all.
Mortise Lock Repair & Installation: What the Work Actually Involves
When a mortise lock begins to fail, the symptoms vary: a latch bolt that retracts sluggishly, a deadbolt that binds mid-throw, a spindle hub that spins freely without engaging the latch, or a mortise lock cylinder that turns but produces no movement in the bolt. Each symptom points to a different internal component — a worn cam follower, a broken spring pack, a stripped hub, or a misaligned cylinder tailpiece. Our technician removes the lock body from the door pocket, disassembles it on-site, and identifies the exact failed part. Where the body is repairable, we rebuild it with matched replacement components. Where the body itself is cracked, corroded beyond serviceability, or simply obsolete, we source a direct-size replacement mortise lock set and install it so that the existing door prep requires as little modification as possible.
Installation on a door that has never had mortise hardware is a more involved job. Cutting a mortise pocket into a solid-wood door stile requires precise depth and width control to avoid splitting the stile or leaving the body loose in the pocket. Our technicians are equipped to perform this work on exterior doors — including front entry doors, rear garden doors, and heavy timber doors in older Port Credit and Lakeview properties — using damage-free techniques wherever the door and frame conditions allow. We also handle mortise lock set exterior door upgrades where homeowners want to replace an aging cylindrical deadbolt-and-knob combination with the stronger, more integrated protection that a full mortise body provides.

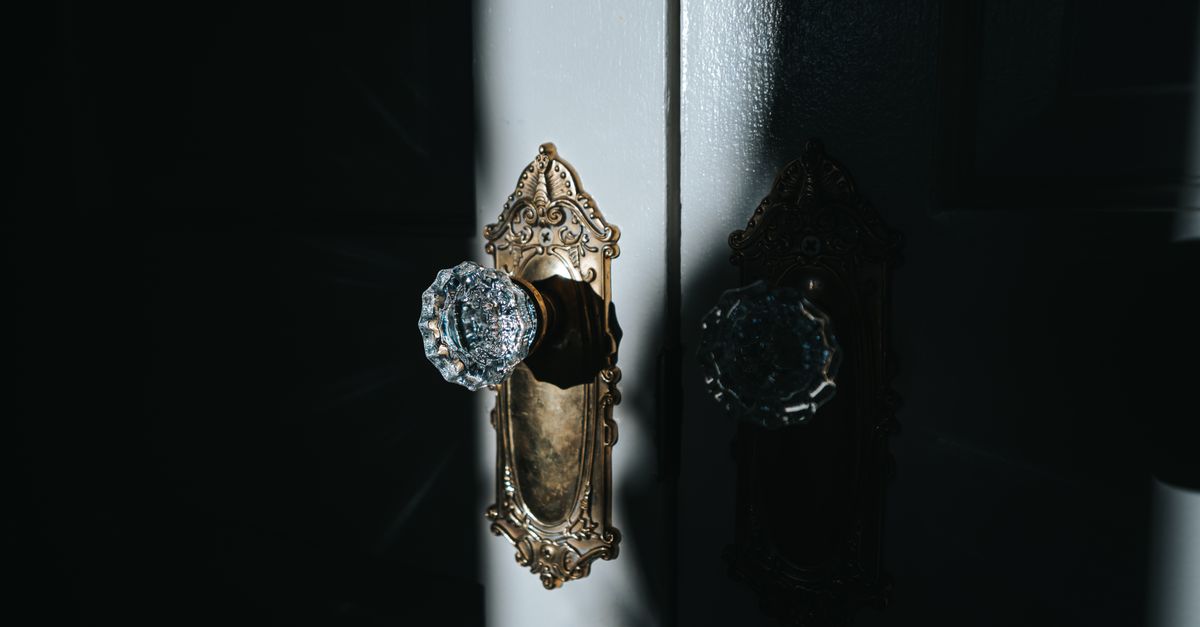

Cylinders, Keyways, and Rekeying Your Mortise Hardware
The mortise lock cylinder is the component most often in need of attention. Over time, worn key cuts, contaminated pin stacks, and corroded springs cause a cylinder to become sticky, intermittent, or completely unresponsive. In many cases the cylinder can be rebuilt or rekeyed to a new key rather than replaced entirely — a worthwhile option when the cylinder's keyway matches the rest of the hardware on the property. For Mississauga homeowners managing a rental property or taking possession of a resale home, rekeying every mortise cylinder to a single new key (or a master key hierarchy) eliminates the uncertainty of who may hold copies of the previous key.
When a full cylinder replacement is required, matching the correct format matters. Mortise cylinders come in different thread diameters, different cam configurations, and different tailpiece lengths. A Corbin Russwin mortise lock uses a specific cam geometry that differs from what a Baldwin mortise lock requires; installing the wrong cylinder will result in a bolt that travels only partway or not at all. Our technicians verify the body format before ordering or pulling a replacement cylinder from stock, so the installed hardware functions correctly from the first turn of the key. If you are mid-renovation and the situation is urgent, call (289) 206-5983 — we answer 24/7 and can dispatch a mobile unit to your Mississauga address without delay.
Beyond the Classic Deadbolt: Electric, Smart, and Sliding Door Mortise Options
The mortise lock platform is not limited to mechanical hardware. An electric mortise lock integrates a solenoid or motor-driven latch directly into the lock body, enabling fail-secure or fail-safe operation that is commonly specified for commercial entry points, multi-unit residential buildings, and controlled-access doors in Mississauga's older mixed-use building stock. These units require a matched electric strike or power supply and must be installed with correct wiring routed through the door frame — work that demands both locksmith knowledge and an understanding of access control systems. Our commercial locksmith technicians handle electric mortise lock installation and servicing for strata managers, property managers, and business owners across the city.
A smart mortise lock replaces or supplements the mechanical cylinder with a credential reader — keypad, proximity card, Bluetooth, or biometric — while retaining the mechanical lock body for backup operation. This combination is increasingly popular in Mississauga's heritage-designated properties where building codes or owners' preferences prevent replacing the original mortise hardware entirely. For sliding door applications, a sliding door mortise lock provides a multi-point locking mechanism recessed into the edge of the door panel, offering substantially more resistance to forced entry than a surface-mounted latch alone. Whether the project involves a single residential front door or a commercial locksmith scope covering an entire building, our team provides a thorough site assessment, a transparent quote, and installation that meets the door's actual conditions — not a generic specification.
Services Our Mobile Technicians Provide — Mortise and Beyond
Quantum Guard Mississauga Security technicians arrive equipped to handle a full range of lock and door hardware services on a single visit. The following is a representative list of what we carry out in the field across Mississauga: (1) Mortise lock body disassembly and component-level repair; (2) Full mortise lock set replacement on exterior and interior doors; (3) Mortise pocket cutting and fitting on solid-wood door stiles; (4) Mortise lock cylinder removal, rebuild, and replacement; (5) Rekeying mortise cylinders to a new or existing key; (6) Master key system design and implementation for mortise hardware; (7) Corbin Russwin mortise lock servicing and parts replacement; (8) Baldwin mortise lock installation and adjustment; (9) Electric mortise lock installation with access control wiring; (10) Smart mortise lock integration and credential programming; (11) Sliding door mortise lock installation and repair; (12) Door knob lock replacement and repair on interior and exterior doors; (13) Bored deadbolt installation and rekeying; (14) High-security cylinder upgrades (Medeco, Mul-T-Lock, ASSA formats); (15) Lock lubrication and preventive maintenance calls; (16) Broken key extraction from mortise cylinders; (17) Emergency lockout response — residential; (18) Emergency lockout response — commercial; (19) After-hours and weekend locksmith service across Mississauga; (20) Lock hardware supply and installation for renovation contractors; (21) Multi-point locking system repair on entry doors; (22) Door frame and strike plate reinforcement for kick-in resistance; (23) Mailbox and intercom lock service for older multi-unit buildings; (24) Cabinet and storage lock installation for heritage furniture; (25) Commercial locksmith re-core service for office and retail suites; (26) On-site ownership verification before any lock work is performed; (27) Up-front written pricing confirmed before work begins.
Frequently asked questions
Answers to what our customers ask most. Still unsure? Just call.
How do I know if my mortise lock can be repaired or if I need a full replacement?+
In most cases, the decision comes down to the condition of the lock body itself. If the cast-iron or steel case is intact and the failure is limited to worn springs, a broken cam, a seized hub, or a damaged cylinder, a skilled technician can rebuild the body on-site with matched parts — often the more cost-effective and structurally sound choice on a heritage door. If the body is cracked, heavily corroded, or the internal geometry is so worn that rebuilt components won't seat properly, a replacement lock body of the same pocket dimensions is the right path. Our technician makes this assessment after removing and inspecting the body, then walks you through the options and confirms an exact price before any work proceeds.
What factors affect the price of a mortise lock repair or installation in Mississauga?+
Several variables shape the final quote. The condition and brand of the existing hardware matters — sourcing components for a Corbin Russwin mortise lock from the 1970s takes more effort than stocking for current production models. Whether the job is a cylinder swap, a full body rebuild, or a new mortise pocket cut into the door stile each carries a different scope of labour. The time of the service call (daytime, evening, or overnight emergency), your location within Mississauga, and any additional hardware such as a new mortise lock set, electric mortise lock components, or a smart mortise lock module all factor in. We confirm the complete price up front before touching your door — there are no surprises on the final invoice.
Can you install a mortise lock on a door that currently has a standard knob-and-deadbolt setup?+
Yes, though it requires more preparation than a simple swap. A mortise lock set sits inside a pocket mortised into the door edge, so a door currently drilled for a cylindrical bored lock needs a new mortised pocket cut to the correct depth and width for the chosen body. On solid-wood doors — common in older Mississauga homes — this is very achievable. On hollow-core or composite doors, we assess whether the door stile is thick enough to accept a mortise body without structural compromise. Our technicians use precise techniques to minimize material removal and avoid splitting or weakening the stile. We also address the frame and strike pocket at the same time to ensure the deadbolt and latch throw properly into a reinforced strike.
My mortise lock cylinder is stiff and sometimes won't turn at all. Do I need a new cylinder?+
Not necessarily. A stiff or intermittent mortise lock cylinder is often caused by contamination inside the pin stacks — decades of graphite, oil residue, and fine debris can gum up the springs and driver pins. In many cases a thorough cleaning and lubrication with a dry-film lubricant restores smooth operation. If the key cuts have worn to the point where the shear line is inconsistent, or if the cylinder body itself is cracked or corroded, replacement is the better option. Our technicians carry both the tooling to service cylinders in the field and a stock of replacement cylinders in common mortise formats, so the repair or replacement happens in a single visit.
Do you handle emergency lockouts involving mortise lock doors?+
Yes. Emergency locksmith calls on mortise-equipped doors are a regular part of our work in Mississauga. Because a mortise lock integrates the latch and deadbolt in a single body, the entry techniques and tooling differ from those used on a standard cylindrical lockset — a factor that catches out technicians who rarely work with this hardware. We verify your identity and ownership or occupancy before beginning any work, in keeping with Ontario locksmith standards. Once verified, our goal is to restore your access damage-free wherever the lock's condition permits. Call (289) 206-5983 any time — we dispatch 24/7, including nights, weekends, and holidays, to addresses throughout Mississauga.
Can you service electric or smart mortise locks for a commercial property in Mississauga?+
Absolutely. Our commercial locksmith technicians are experienced with electric mortise lock bodies used in access-controlled entry points, as well as smart mortise lock platforms that combine electronic credentials with a mechanical mortise body for backup entry. We handle installation, wiring coordination, credential programming, and servicing for these units. For property managers overseeing older mixed-use or multi-unit buildings — a common scenario in established Mississauga corridors — we can assess the existing door prep and frame to recommend the right electric or smart mortise specification that fits without requiring a full door replacement.
